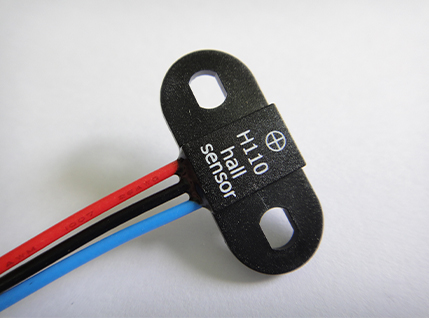

H110 Hall Effect Sensor
Description
Features：
Operation voltage range from 2.4V to 26V with reverse voltage protection。
Operating temperature range from -25℃ to 80℃。
ON (Low) with magnetic South Pole and OFF (High) without magnetic field or with magnetic North Pole。
Built in a temperature compensated voltage regulator, a differential amplifier, a hysteresis controller and an open-collector output driver capable of sinking up to 20mA current load
Benefits：
High switching speed up to 10kHz
Unaffected by harsh environments
Long life；Up to 20 billion operations
Customer selection of cable length and connector type
Applications：
Position, Limit and Angle sensing
RPM, Speed and Flow measurement
Electrical Characteristics：
( T＝+25℃, Vcc＝2.4V to 26V )
| Characteristic | Symbol | Test Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage | Vcc | ─ | 2.4 | ─ | 26 | V |
| Output Saturation Voltage | Vout (sat) | Vcc＝12V, Ic＝10mA, B＞Bop | ─ | 0.2 | 0.6 | V |
| Output Leakage Current | Leakage | Vcc＝12V, B＜Bop | ─ | ＜0.1 | 10 | uA |
| Supply Current | Supply | Vcc＝12V, Output Open | ─ | 2.0 | 5 | mA |
| Output Rise Time | Tr | Vcc＝12V, RL＝2KΩ, CL＝20pf | ─ | 1.0 | 10 | μs |
| Output Falling Time | Tf | Vcc＝12V, RL＝2KΩ, CL＝20pf | ─ | 0.3 | 1.5 | μs |
Magnetic Characteristics：
| Characteristic | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Point | Bop | ─ | ─ | +80 | Gauss |
| Release Point | Brp | +10 | ─ | ─ | Gauss |
| Hysteresis Window | Bhys | ─ | 10 | 30 | Gauss |

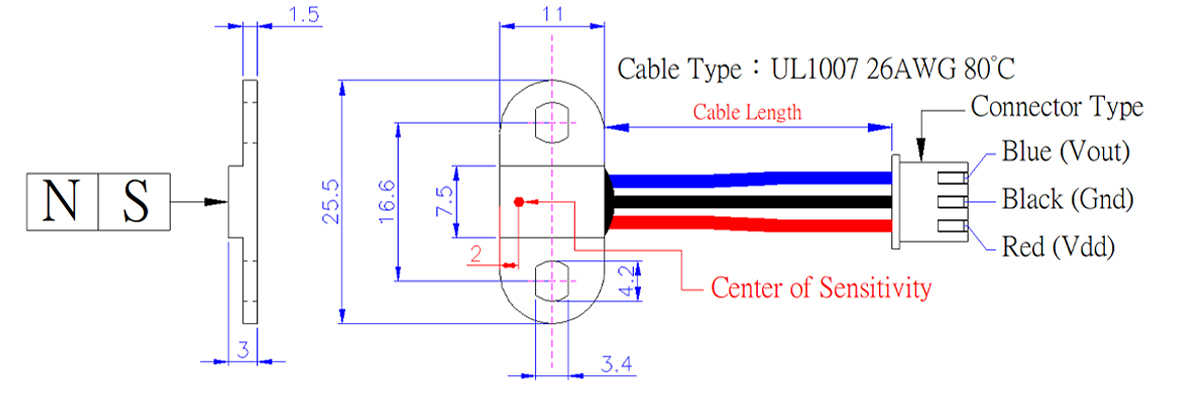

| Dimensions Unit：mm |
|---|
 |

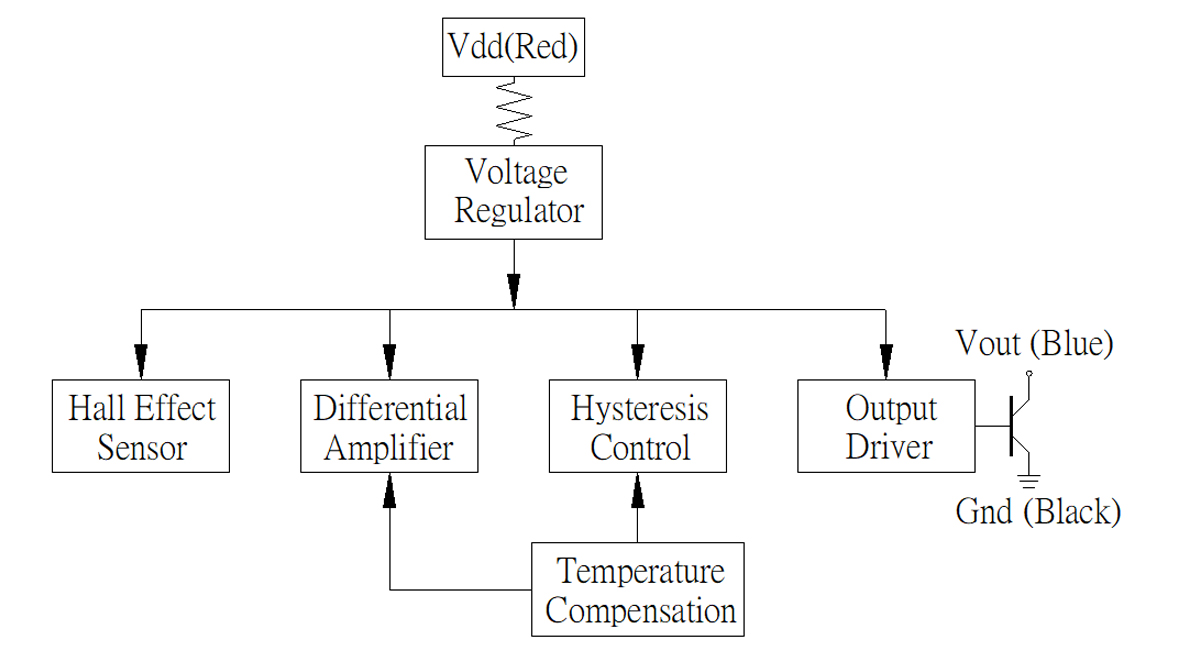

| Block Diagrams |
|---|
 |
